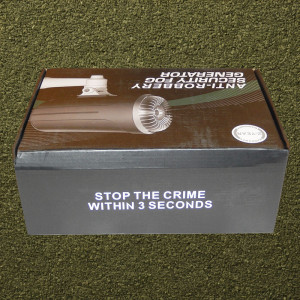

Generator Kit + 5 Mega Pixels Fisheye Mini Camera

Generator Kit + 5 Mega Pixel Fisheye Mini Camera

This safety kit includes:

• - 1 fog generator
• - 1 mini FishEye camera of 5 mega Pixels

Check out the video showing how to use the kit.

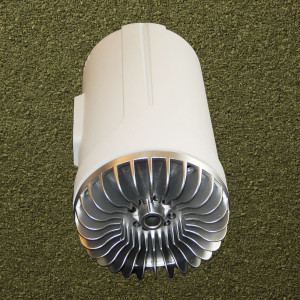

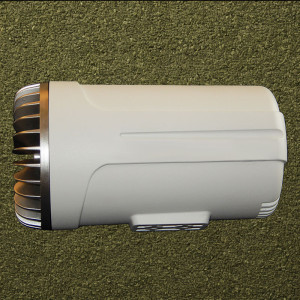

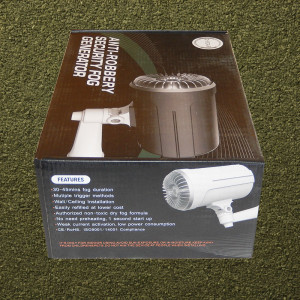

The Euro Security Protect fog generator

The Security Fog Generator is revolutionizing the asset protection industry, incorporating cutting-edge technology.

You transform your passive security system into an active solution.

Opting for Euro Security Protect equipment guarantees a higher level of protection while considerably reducing the risk of burglaries, squats and Home jacking.

In recent years, significant research and development has been devoted to the field of security, leading to product refinement and the emergence of new technologies. This development provides consumers with a wide range of options, but many of these products remain passive security measures.
For example, alarm systems can alert of intrusions, and surveillance systems can record events, but these devices alone cannot actively act to prevent intrusions.

Imagine the vulnerability of such a moment. For enhanced protection, it is imperative to use active security measures.
Don't just be informed, make sure you're protected.

No monthly service fees. No long-term contracts. No maintenance commitment. A simple, one-time investment!

Remember, they can't steal what they can't see!

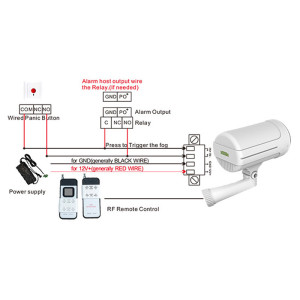

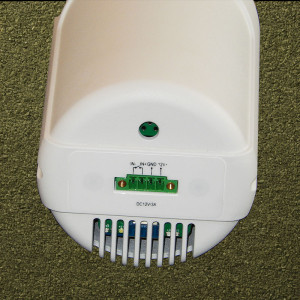

Our fog generator can be connected to your existing alarm system if it has a relay output, transforming it from simple passive monitoring to active monitoring.

The generator diffuses thick fog, non-toxic, safe for humans and pets and biodegradable.
Once activated, our generator quickly releases a dense cloud of fog. This opaque barrier conceals valuable items, thus constituting a protective shield and a powerful deterrent against theft and malicious intrusions.

Even when you are present, you can guarantee your physical security, without contact with intruders, by triggering the system:

• - With the supplied remote control
• - By the Panic wall button provided
• - Via an alarm center with a relay contact
• - With a mobile phone with the Tuya Smart application available on Android and IoS

The fog fills the room of 40 to 60 m² in 20 seconds, and remains active for 40 minutes.

There are 2 types of cartridges:

• - for 60 m²
• - for 40 m² with less residue

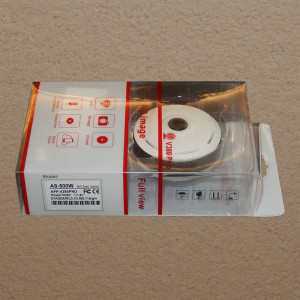

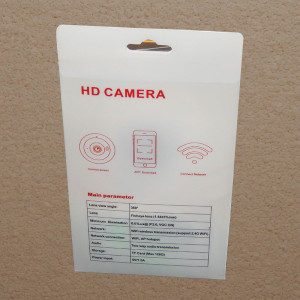

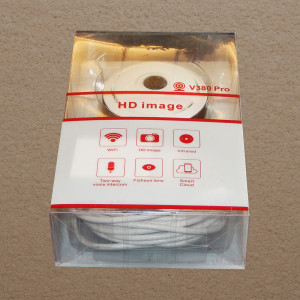

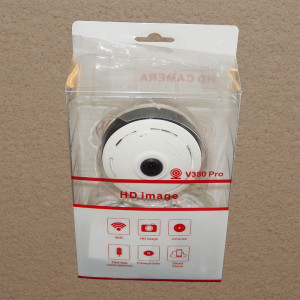

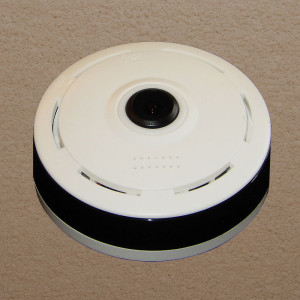

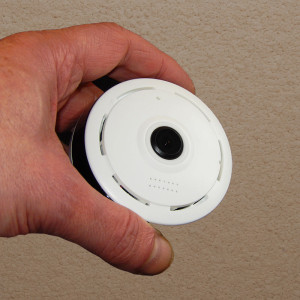

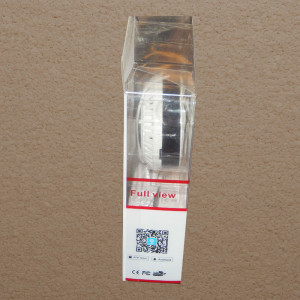

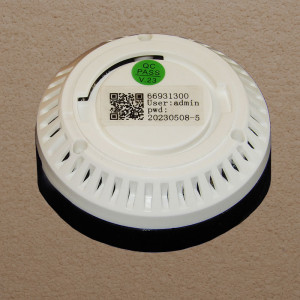

The FisEye 5 Mega Pixels mini camera

This Mini Fisheye Surveillance Camera is the economical solution for monitoring your home, wherever you are.

Despite its small size (7 cm in diameter and 4 cm thick), it is equipped with a fisheye type sensor of 5 mega pixels, displaying a full HD 1080p image.

The wide angle allows 160° viewing horizontally and vertically, without the need for motorization (Fisheye Technology).

The camera works via WiFi and communicates directly with your internet box on the 2.4 GHz band.
You will be able to view the camera on your laptop or tablet, either via WiFi or via the 3G, 4G or 5G mobile network, wherever you are.

The camera sends you a notification as soon as movement is detected, which allows you to monitor the actual presence of an intruder in your home or business, and to trigger the fog generator if this is the case.

This camera does not allow automatic triggering of the fog generator (autonomous operation) due to the possibility of false detection of an intrusion.
To benefit from autonomous operation, i.e. without needing to check the actual presence of an intrusion, you can opt for our double PIR motion detector, a safe and reliable means of direct triggering of the smoke generator.

Due to their low cost, several mini cameras can be installed in your home.

The mini camera works with the V380 Pro mobile application available for IoS and Android.

It has 3 infrared LEDs allowing night vision (in black and white) over a distance of 5 to 8 meters.
It accepts micro-SD cards up to 128 GB (not included), allowing scenes to be recorded in the event of motion detection.
Video sequences can be viewed on your mobile device in a delayed manner.

The camera is not waterproof and should only be used indoors.
It does not have a wired Ethernet connection to be connected directly to a router or computer.
Viewing can only be done over WiFi.
The camera cannot send video sequences by FTP to a remote server and does not have a web interface. Only the application allows you to configure and view the camera as well as the recordings on the Micro-SD card.

The camera is powered by a 5V USB socket.

Note that the V380 Pro application displays sponsored content.

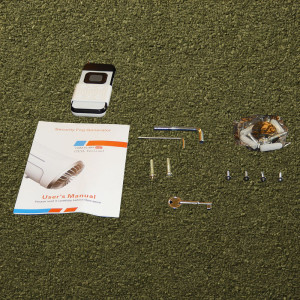

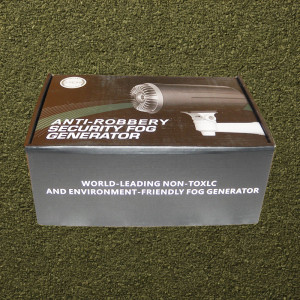

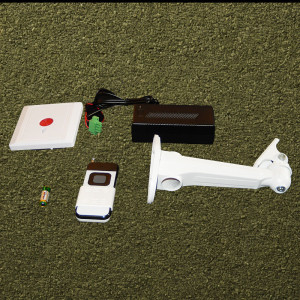

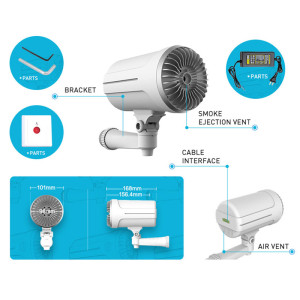

Kit Contents

The pack includes:

• - 1 generator
• - 1 pre-installed smoke cartridge
• - 1 transformer 230V AC / 12V DC
• - 1 remote control
• - 1 wall button Panic with release key
• - 1 fixing arm
• - Screws, tools and dowels
• - 1 5 MP Wifi fisheye camera
• - 1 adapter 110 to 230V AC / 5V DC
• - 1 USB cable
• - 1 user manual (in English)
• - 1 wall mounting bracket
• - Screws and dowels + Allen key

The product is non-toxic and safe for use on humans or pets:

• - No irritation to the skin
• - No irritation to the eyes
• - No danger if inhaled or swallowed

Safety instructions

• - the product is ready to use. The cartridge is installed.
• - When installing the generator, make sure that the generator is off.
• - After pairing with the Tuya app, if you press "Activate" or press the button on the remote control, the mist will be sprayed without delay. If you want to test the device, remember to unplug the cartridge, as explained in the videos.
• - When spraying, make sure that your face is not in the immediate vicinity of the generator. Do not look at the generator head-on if you are near the device.

Installation and activation of the fog generator with the Tuya Smart mobile application and remote control

This video shows how to pair the fog generator with Tuya Smart Life, as well as how to use the remote control and the Panic button.

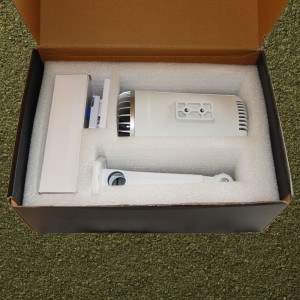

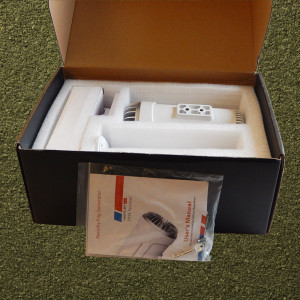

Unpacking and installation

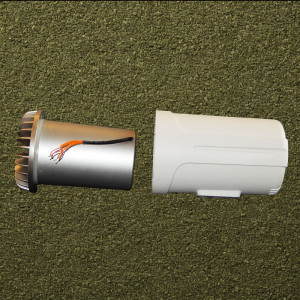

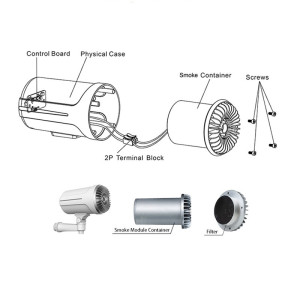

Replacing a fog generator cartridge

A cartridge can only be used once. After use, it must be replaced.
Be sure to unplug the device before replacing the cartridge.

The procedure for replacing a cartridge is done in 2 minutes. Here are the instructions in pictures.

Installation of the 5 Mega pixels Fisheye camera

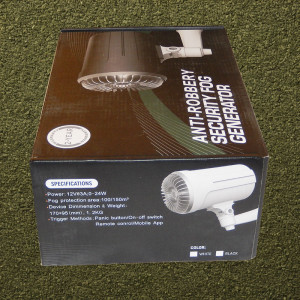

Technical characteristics of the fog generator

Technical characteristics of the camera
